How To Choose Linear Motion Guide?

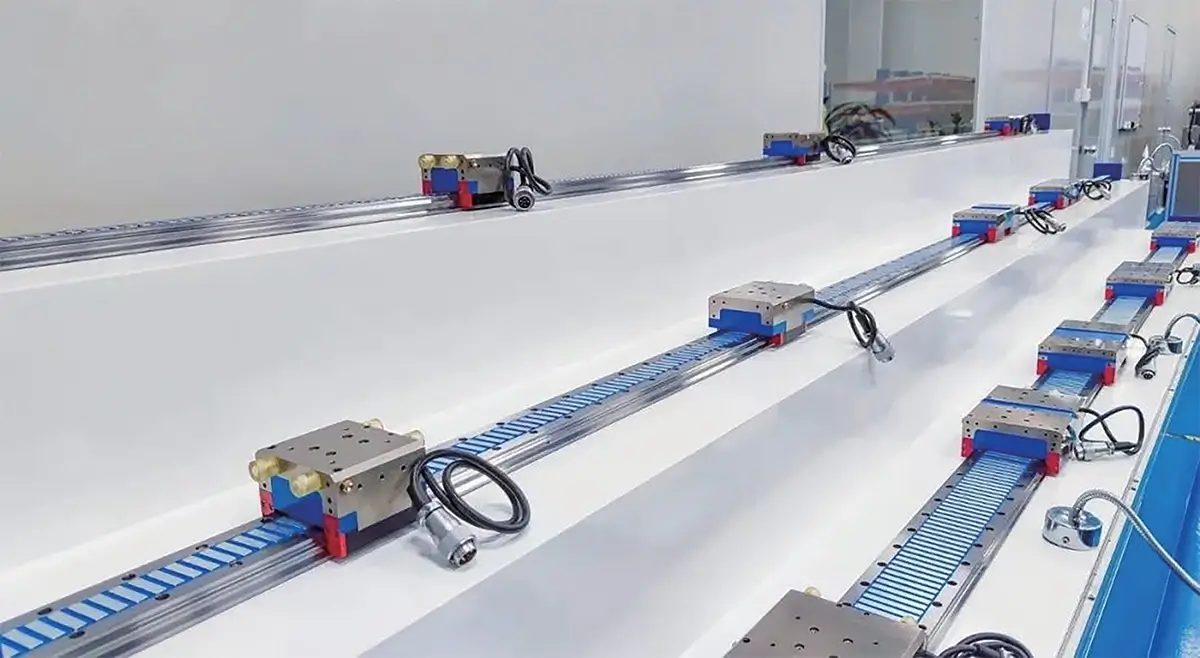

A linear motion guide is a device that helps objects move in a straight line with precision. It is widely used in automation, robotics, and manufacturing. There are many types of linear motion guides, each designed for different applications. Some are built for heavy loads, while others focus on speed and precision. Selecting the right one ensures better performance, longer lifespan, and reduced maintenance costs. With our professional industry experience, we will help you understand linear motion slides, how to choose the right one, and answer common questions.

What Is Linear Motion Guide?

A linear motion guide is a mechanical component that allows smooth and controlled movement in a straight line. It also be called linear slide or linear rail. It consists of a rail and a carriage, with rolling or sliding elements that reduce friction.

Types of Linear Slides

• Ball Bearing Slides: Use ball bearings for low friction and high precision. These are commonly used in CNC machines, semiconductor manufacturing, and high-accuracy automation systems.
• Roller Bearing Guides: Use cylindrical rollers for higher load capacity. These are ideal for applications that need to support heavy weights, such as industrial presses and heavy-duty conveyors.
• Dovetail Guides: Provide rigid, precise movement without rolling elements. These guides are often used in manual positioning systems and machining equipment where stability is key.
• Linear Motor Rails: Use a motorized system for high-speed and smooth motion. These are best for applications that demand ultra-fast and precise motion, such as high-tech medical devices and laser cutting machines.

Each type has specific advantages depending on the application. How to pick for your needs?

How To Choose Linear Motion Guide For The Project?

Choosing a linear motion slide is not just about picking one that fits. It must match your application’s specific needs. The wrong choice can lead to performance issues, increased maintenance, and even failure in operation. To make the right selection, you need to consider several factors such as load, precision, speed, environment, and space constraints. By evaluating these aspects, you can find a guide that offers reliability, efficiency, and long-term durability.

1. Load Capacity

Consider the weight the rail needs to support. Higher loads require roller-bearing rails. Overloading a guide can lead to premature wear and decreased performance.

2. Precision Requirements

Ball bearing guides are best for applications needing high accuracy, such as CNC machines. If minor positioning errors are acceptable, other types may work as well.

3. Speed and Acceleration

If your system moves at high speeds, a linear motor guide is a better choice. Traditional bearing guides might not perform well in high-speed applications due to friction and wear.

4. Environmental Conditions

Dusty or corrosive environments may need sealed or coated guides. Some materials, like stainless steel, resist corrosion better than others.

5. Maintenance Needs

Some rails require regular lubrication, while others are maintenance-free. Reducing maintenance costs is important for high-use industrial applications.

6. Mounting Space

Choose a guide that fits your available space without reducing performance. Some guides have a low profile, making them ideal for compact machines.

FAQ

1. How often do linear motion guides need maintenance?

It depends on the type and usage. Some need lubrication every few months, while others require little upkeep.

2. Can a linear motion guide be used in extreme temperatures?

Yes, but special materials or coatings may be needed for high-heat or freezing environments.

3. What is the lifespan of a linear motion rail?

It varies based on use and maintenance. High-quality guides can last years with proper care.

Consider these factors and your project applications requirements to get the best linear motion guides. If you don’t understand and looking for a professional linear motion guide manufacturer to help for your project, feel free to contact us to get the best services.
