What Is Linear Servo Motor?

Linear servo motors are devices that create straight-line motion using electromagnetic force. Unlike regular motors that spin, a linear servo motor moves in a direct path. They are known for their high speed, precision, and smooth movement. They are used in many industries, such as electronics, robotics, packaging, and medical devices. They help machines work faster and more accurately. We will help you understand how linear servo motors work, where they are used, and what their pros and cons are.

How Linear Servo Motors Work?

A linear servo motor is a type of direct-drive motor that creates straight-line movement using electromagnetic force. Unlike rotary motors that turn a shaft, this motor moves a load along a linear path. It replaces mechanical parts like screws or belts, making motion cleaner and more direct.

The motor has a moving part called the forcer and a stationary part called the platen. Magnets and coils inside the motor create a magnetic field that pushes the forcer along the platen. This movement is controlled by electrical signals.

Most linear servo motors are powered by either AC or DC electricity. Many industrial systems use AC linear servo motors because they support higher speeds and longer travel distances. DC versions are available but are more common in smaller or portable devices. And speed depends on the design, power, and load. Some linear servo motors can reach speeds over 5 meters per second. Even at high speed, they maintain accuracy with help from a feedback system, like an encoder. This system checks position in real time and keeps the motion precise.

Applications

Linear servo motors are used in many industries that require fast, accurate, and repeatable motion. They are especially useful in systems where space is limited, and traditional motors can’t deliver the same level of precision. Because they move in a straight line, they reduce the need for extra mechanical parts. This makes them more efficient and reliable over time.

1. Semiconductor Manufacturing

Linear servo motors move wafers and parts with high speed and extreme accuracy. This helps reduce errors during chip production. The motors support cleanroom environments since they operate quietly and with minimal vibration. They also allow for rapid changes in motion, which improves productivity in assembly lines.

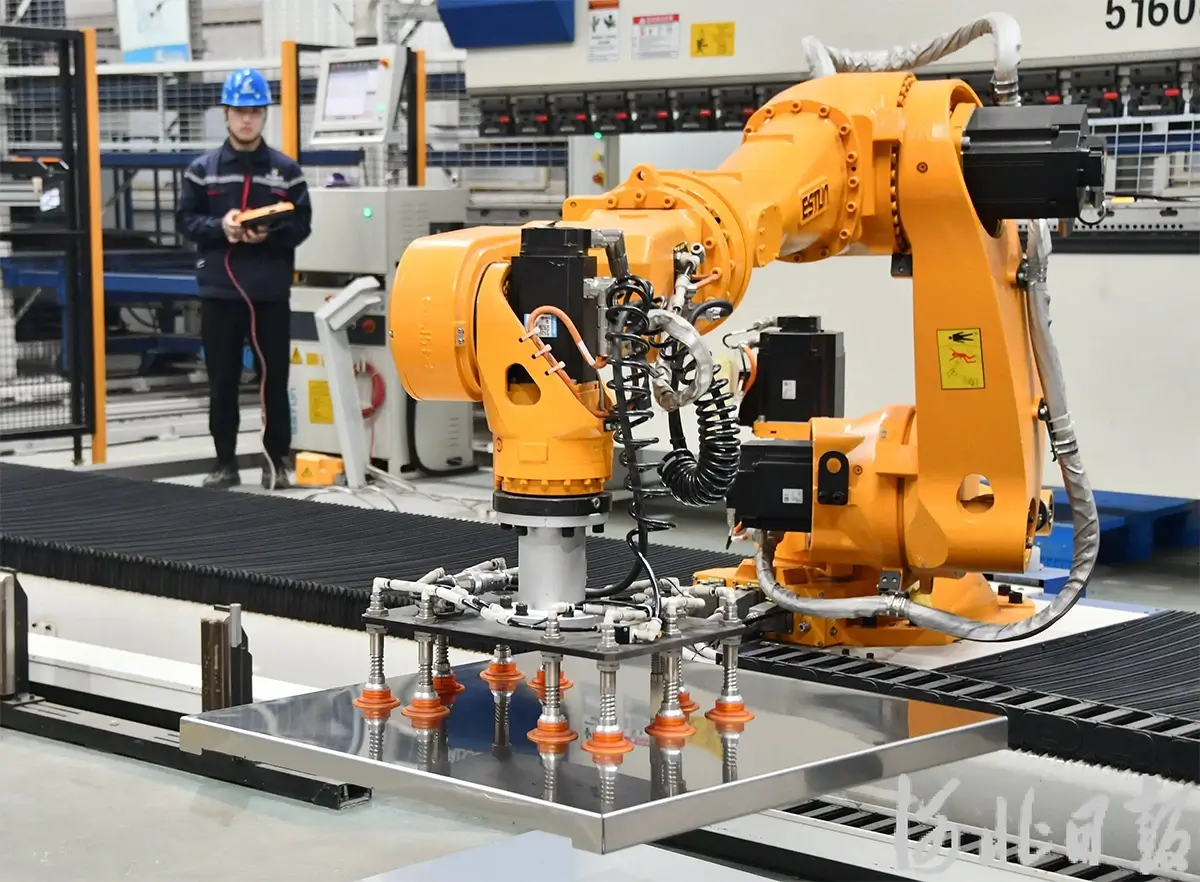

2. Robotics

These motors control robot arms and platforms that perform delicate tasks. Their precise feedback system ensures accurate, repeatable movement. This is important in environments like labs, factories, or medical settings. Linear servo motors help robots move more smoothly and respond faster to commands.

3. Medical Equipment

Linear servo motors are used in devices such as imaging systems, surgical tools, and lab machines. They help guide parts with steady and exact motion. This improves safety and accuracy during medical procedures. Their low noise and low vibration also make them suitable for sensitive environments.

4. Laser Cutting and Engraving

These systems need precise motion to follow exact patterns. Linear servo motors allow the laser to move smoothly without sudden stops or shifts. This results in cleaner edges and better detail. They also allow faster processing, which helps boost productivity.

5. Packaging Systems

Linear servo motors help move products quickly and accurately through packaging lines. They are often used to push, pull, lift, or lower items during packing. Their fast response and reliable motion help reduce downtime. This keeps production moving and improves overall efficiency.

Advantages And Disadvantages

When deciding if a linear servo motor is right for your system, it’s important to look at both the strengths and the limitations. These motors are powerful and precise, but they aren’t always the best fit for every setup.

Pros

1. High Precision: Great for tasks that need accurate positioning.

2. Fast Speed: Can move quickly without losing control.

3. Smooth Motion: No belts or gears means less vibration.

4. Low Maintenance: Fewer moving parts reduce wear and tear.

Cons

1. Higher Cost: More expensive than basic motor systems.
2. Complex Setup: Needs a matching controller and feedback device.
3. Sensitive to Environment: May need protection from dust and heat.
