Key Components For Linear Motion System
Linear motion systems are used in many industries to provide smooth and precise movement. They play an important role in automation, robotics, manufacturing, and medical equipment. Without these systems, many machines would not function efficiently.
A linear motion system consists of several key parts that work together. Each part has a specific function that affects the system’s performance. In this article, you will learn about the main components of a linear motion system and their functions.
They work together to achieve smooth and precise movement. Each part has a unique role in maintaining accuracy, reducing friction, and improving efficiency. The right combination of these components ensures reliable operation and long service life.
1. Linear Guides

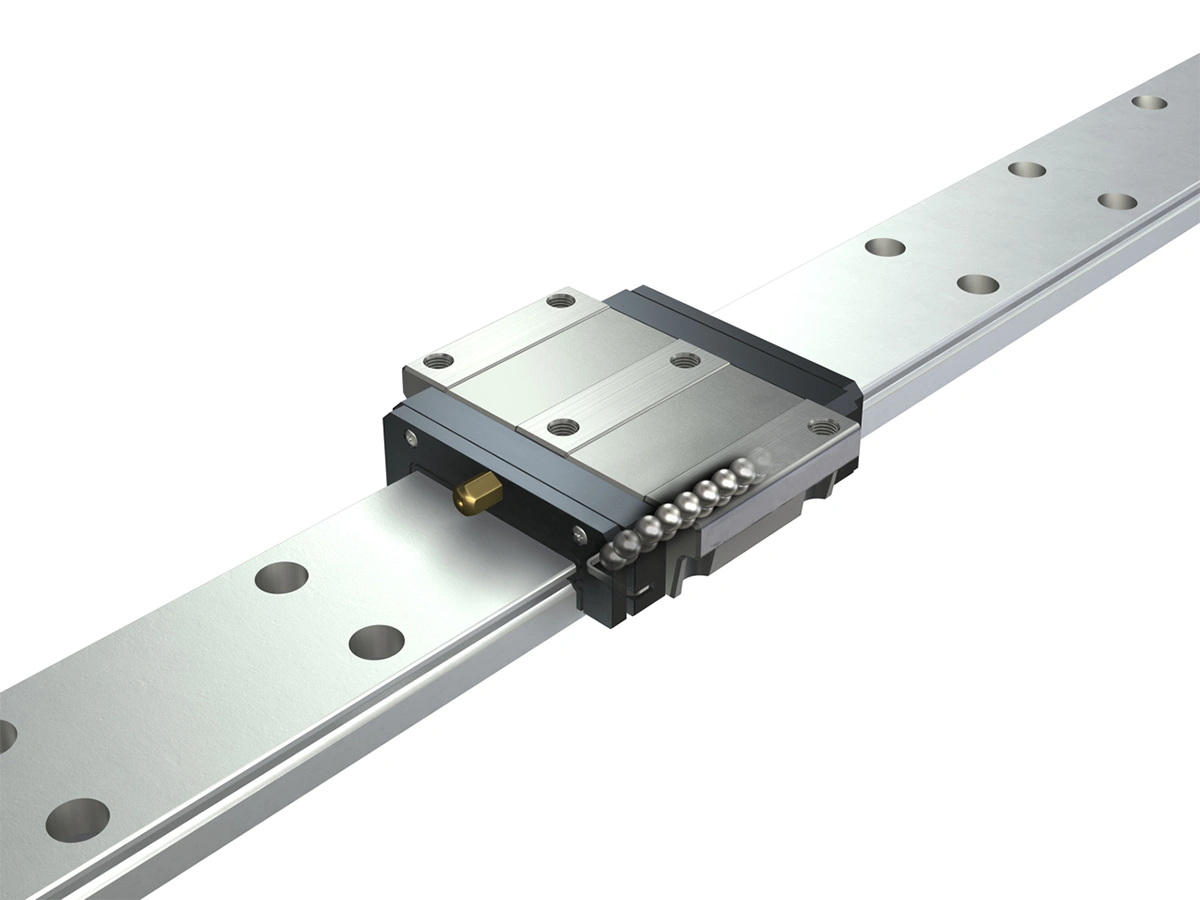

These components support and guide the moving part along a straight path. They are designed to minimize friction and ensure smooth operation. Linear slides come in different types, such as ball bearing and roller bearing guides, depending on the load and precision required. They are widely used in CNC machines, automation systems, and medical devices where precise positioning is necessary.
2. Linear Bearings
Linear bearings allow smooth movement along the linear guide by reducing friction. They are available in various designs, such as ball bearings and plain bearings, to fit different applications. Ball bearings provide low friction and high-speed performance, while plain bearings are more suitable for applications that require high load capacity. Proper lubrication and maintenance help extend their lifespan and improve efficiency.
3. Ball Screws
A ball screw converts rotational motion into linear motion with high efficiency. It consists of a threaded shaft and ball bearings that roll between the nut and screw, reducing friction and improving accuracy. Ball screws are commonly used in machine tools, robotics, and semiconductor manufacturing, where precise motion control is essential. Compared to lead screws, ball screws provide better efficiency and longer service life.
4. Linear Actuators

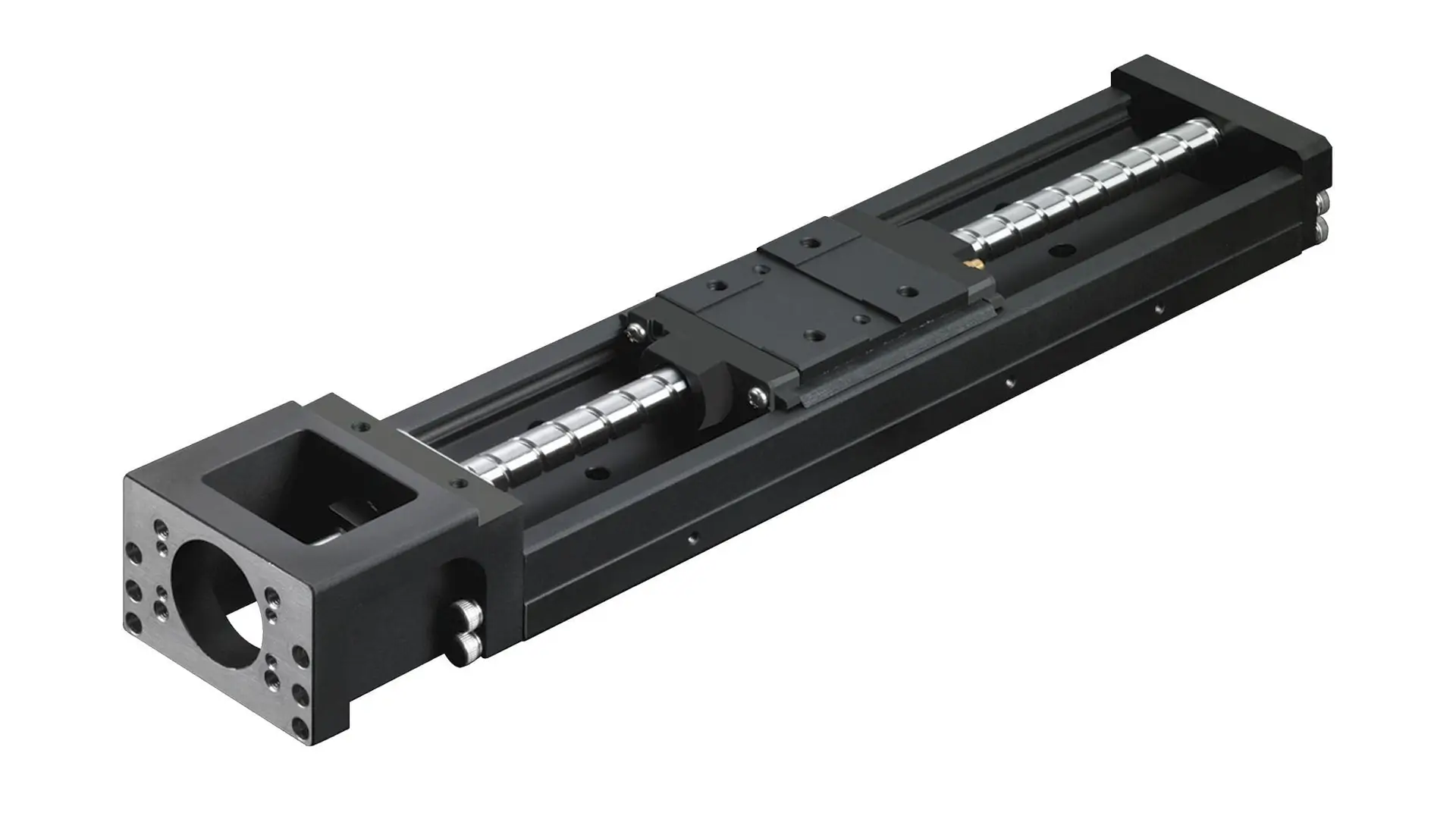

These devices generate linear motion using electric, pneumatic, or hydraulic power. Electric actuators are popular in automation due to their precise control and energy efficiency. Pneumatic actuators are used in applications requiring fast and simple motion, while hydraulic actuators are preferred for high-force applications. Choosing the right type of actuator depends on factors such as speed, force, and control requirements.
5. Motors
Linear motors are the driving force behind linear motion systems. Stepper motors and servo motors are the most commonly used types. Stepper motors are ideal for applications that need precise positioning without feedback, while servo motors provide high speed and torque with closed-loop control. The choice of motor depends on the level of precision, speed, and load requirements for the application.
6. Control System
The control system manages movement, speed, and positioning to ensure smooth and coordinated operation. It consists of controllers, sensors, and software that regulate motor function and monitor system performance. Advanced control systems use programmable logic controllers (PLCs) and motion controllers to improve efficiency and automation. A well-designed control system enhances accuracy, reduces errors, and optimizes performance.
