Difference Between Linear Bearing And Ball Bearing

Bearings are small parts, but they do big jobs. Two common types are linear bearings and ball bearings. Each one supports movement, but in different ways. You’ll find them in machines, tools, and everyday items. We will help you understand the difference between linear and ball bearings in this post.

What Is Linear Bearing?

A linear bearing is a type of bearing that allows movement in a straight line. It guides a part to slide back and forth along a fixed path. The goal is to move with as little friction as possible. Linear bearings come in many sizes and shapes, depending on the machine’s need. They help reduce wear and make sure each move is accurate.

Most linear bearings have rolling or sliding parts inside. These parts keep the motion smooth and steady. You’ll often see linear bearings in machines that need precise movement. Examples include measuring tools, cutting machines, and lab devices.

Next, let’s look at what a ball bearing is.

What Is Ball Bearing?

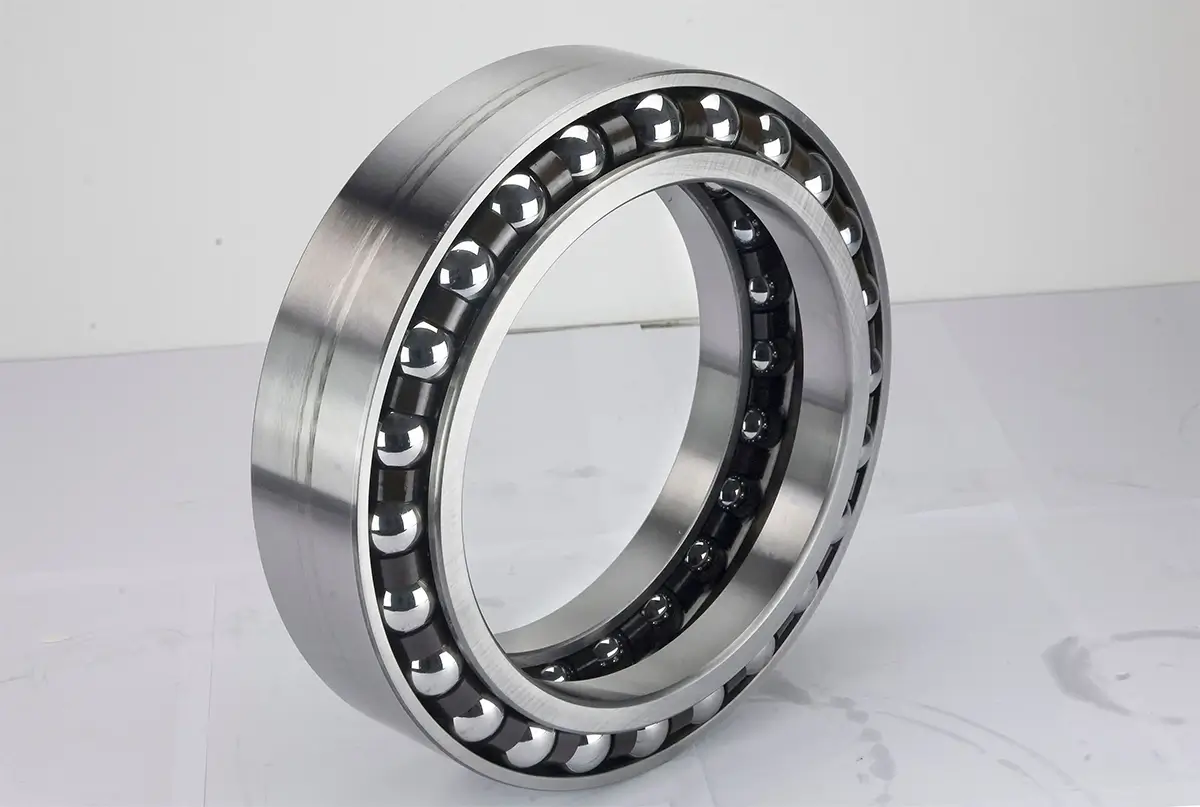

A ball bearing is made to help parts spin or rotate. It uses small steel balls between two metal rings. When one ring turns, the balls roll to lower the friction between the surfaces.

Ball bearings are used in fans, motors, wheels, and gear systems. They make spinning smoother, faster, and more reliable. The size, material, and design of a ball bearing depend on what it needs to support. Some are made for speed, while others are built to handle heavy loads.

Linear Bearing vs Ball Bearing

Linear and ball bearings both reduce friction. But they work in different ways and are made for different types of movement. There are some differences between them. Each of these differences shows how unique the two bearing types are.

1. Motion

Linear bearings support motion in a straight line. This is known as linear motion. They move along a fixed path, back and forth. Ball bearings, on the other hand, support motion around a central point. They are used when a part needs to rotate or spin.

2. Design

Their shapes and inner parts are made for very different tasks. A linear bearing usually includes a rail or guide. It may have balls, rollers, or sliding surfaces that move along this rail. A ball bearing is made up of two rings and a set of balls. The inner ring spins while the outer ring stays in place. The balls in between carry the load and reduce friction.

3. Application

Linear bearings are used in machines that need parts to move in and out or side to side. Common examples include CNC tools, printers, and robots. Ball bearings are found in products that spin. This includes engines, wheels, and electric fans.

4. Shape

Linear bearings are often long and straight. They fit along rails or tracks to support sliding movement. Ball bearings are round or ring-shaped. They fit inside rotating parts like hubs, shafts, and motors.

5. Installation

Linear bearings need straight guides or rails to function properly. These must be aligned to avoid errors in motion. Ball bearings are pressed or fitted into round housings. They’re installed around shafts that spin.

Linear bearings and ball bearings are both important for smooth movement. One helps things slide. The other helps things spin. If your project needs a part to move in a straight line, a linear bearing is the right choice. If your part needs to rotate, go with a ball bearing.
